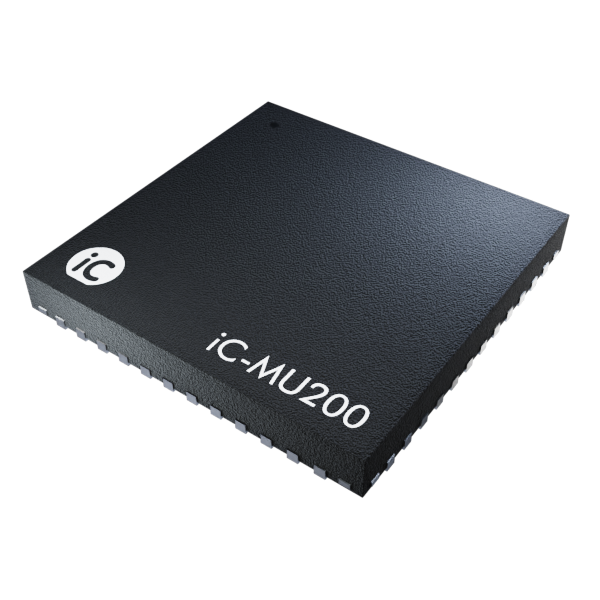

iC-MU200

18-Bit Magnetic Off-Axis Absolute Position Encoder with BiSS C
iC-MU200 is a magnetic hall based encoder iC for absolute position sensors. Hall elements, amplifiers and interpolators, the entire signal conditioning and data processing unit and fast I/O interfaces are monolithically integrated on the chip. From this magnetic end encoder designs in various diameters are supported, with a conversion core adaptable for the angular position resolution in question, and a data output section selectable with serial (BiSS / SSI) or embedded operation (SPI interface) and analog SIN COS output. iC-MU200 has a pole width of 2.00 mm.

Family products with alternative pole widths:
iC-MU (1.28 mm)
iC-MU150 (1.50 mm)
