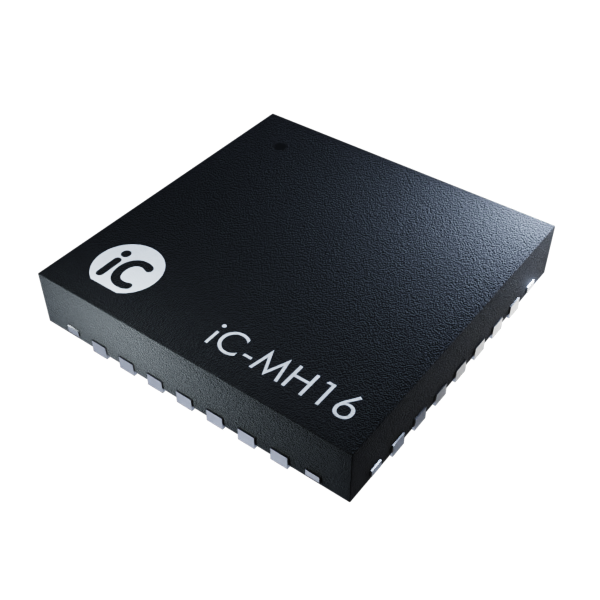

iC-MH16

The iC-MH16 is an integrated Hall encoder for sensing the angular position of a diametral magnet.
The FlexCount interpolator can be set to any factor from 1 to 1024 to and achieve up to 4096 angle steps per revolution. ABZ quadrature signal incremental outputs permit up to 200 000 rpm at the highest resolution with an adjustable index pulse postion. U, V and W for the commutation of brushless DC motors with 1 to 16 pole pairs. The outputs are RS422 compatible with adjustable output current and slew rate.
iC-MH16 features the BiSS Interface for a fast serial, CRC secures data output and bidirectional register access. The programmed setup can be stored to a non-volatile ROM, based on zapping diodes.
