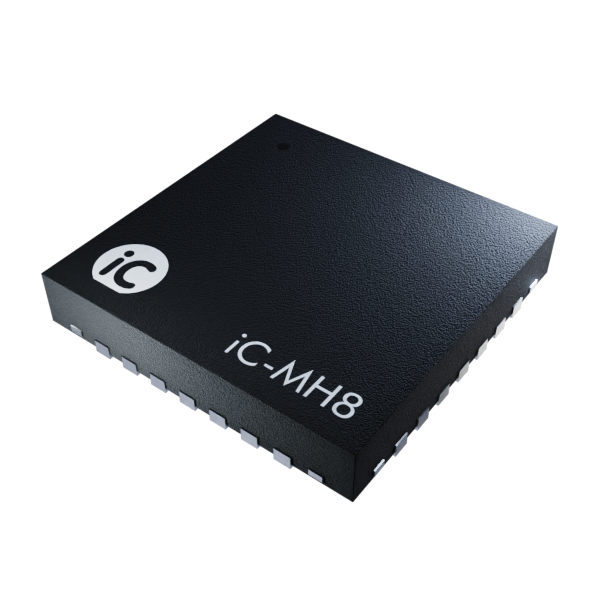

iC-MH8

The iC-MH8 is an integrated Hall encoder for sensing the angular position of a diametral magnet.
The amplified Hall voltages are available as complementary analog sine and cosine signals with regulated 1 Vpp differential amplitude. Using the BiSS C interface the output data can be transmitted serially and allows also access to the internal memory of iC-MH8. The configuration and internal parameters can then be stored permanently in a zapping diode based ROM.
