The new ABB MotiFlex e 180 provides the BiSS interface for feedback applications.
The Arkel Arcode integrated Elevator Unit provides the BiSS interface for elevator applications.

Dual-Axis Servo Drive Module

ESI Motion’s Atom leads the industry with its extremely small size and low weight.  The Atom is a high-performance digital servo controller that can source 100 Amps with an 80 VDC bus to drive the most demanding applications.

Absolute Encoders for High Performance, High Volume Designs

Aura™ is a high resolution absolute encoder in an extremely small, low power SMT package. High accuracy and run speed, combined with wide alignment tolerances, deliver an optimal solution for high volume OEM designs.

Features include:

  • Absolute position feedback
  • Small, low power SMT package
  • High resolution and accuracy
  • High run-speed
  • Wide alignment tolerances
  • Scale eccentricity compensation
  • Low communication latency
  • Comprehensive connectivity

Emulate a wide range of real encoders for HIL applications using Speedgoat real-time solutions and Simulink®. The BiSS Encoder FPGA code module emulates a commercial BiSS encoder and can be used for HIL testing of motion control systems, motor drives, among other applications. Speedgoat FPGA code modules can be used with Simulink-programmable or Configurable FPGA I/O modules.

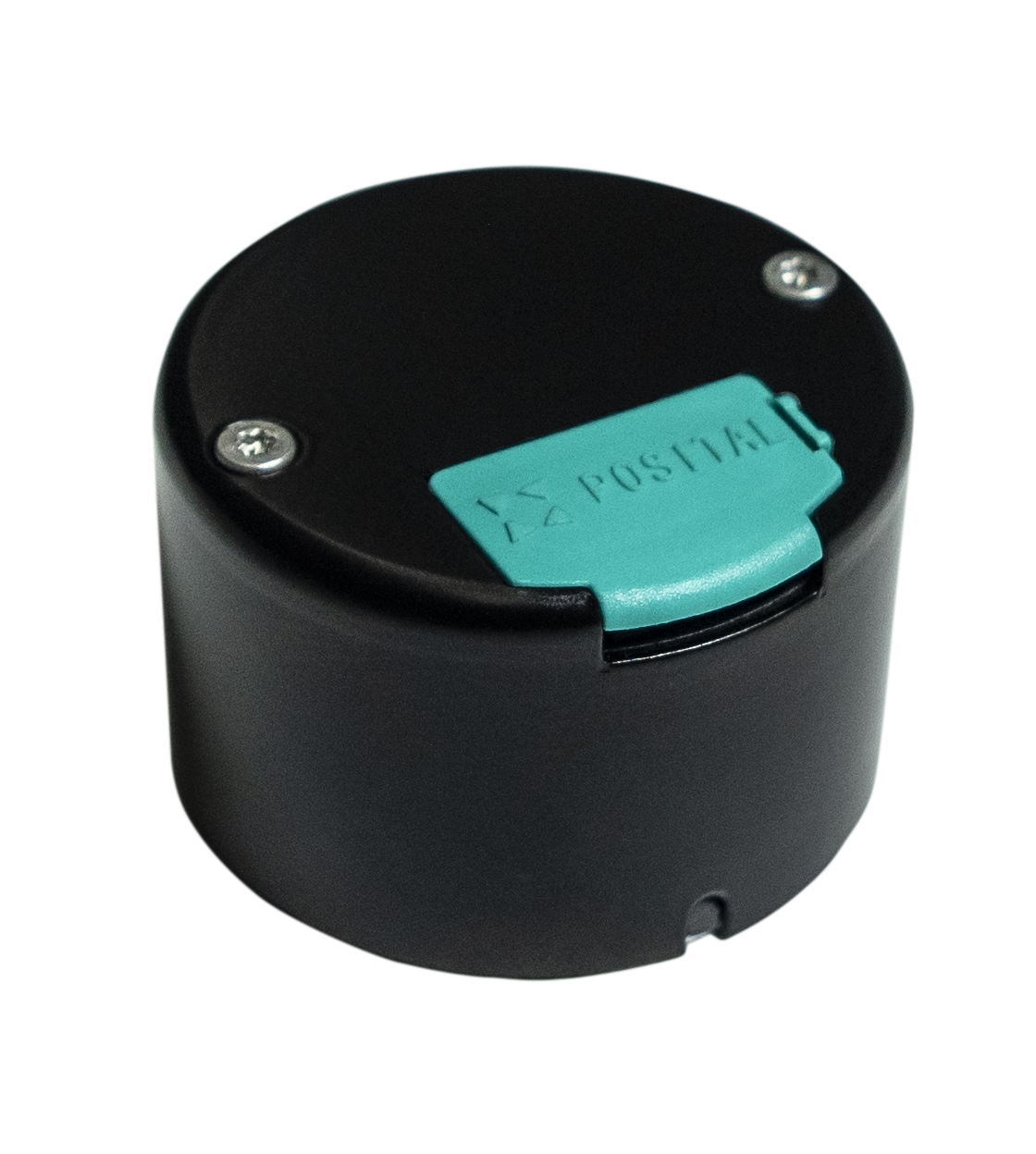

POSITAL’s kit encoders with BiSS provide up to 17 bit electrical resolution and energy harvesting based (Wiegand effect) multiturn position measurements with no need for backup batteries or complex gear systems.
Connect commercial encoders to Speedgoat real-time solutions for real-time testing and simulation. Typically used for rapid control prototyping, the BiSS Master FPGA code module allows connecting BiSS encoders to Speedgoat real-time target machines. Speedgoat FPGA code modules can be used with Simulink-programmable or Configurable FPGA I/O modules.

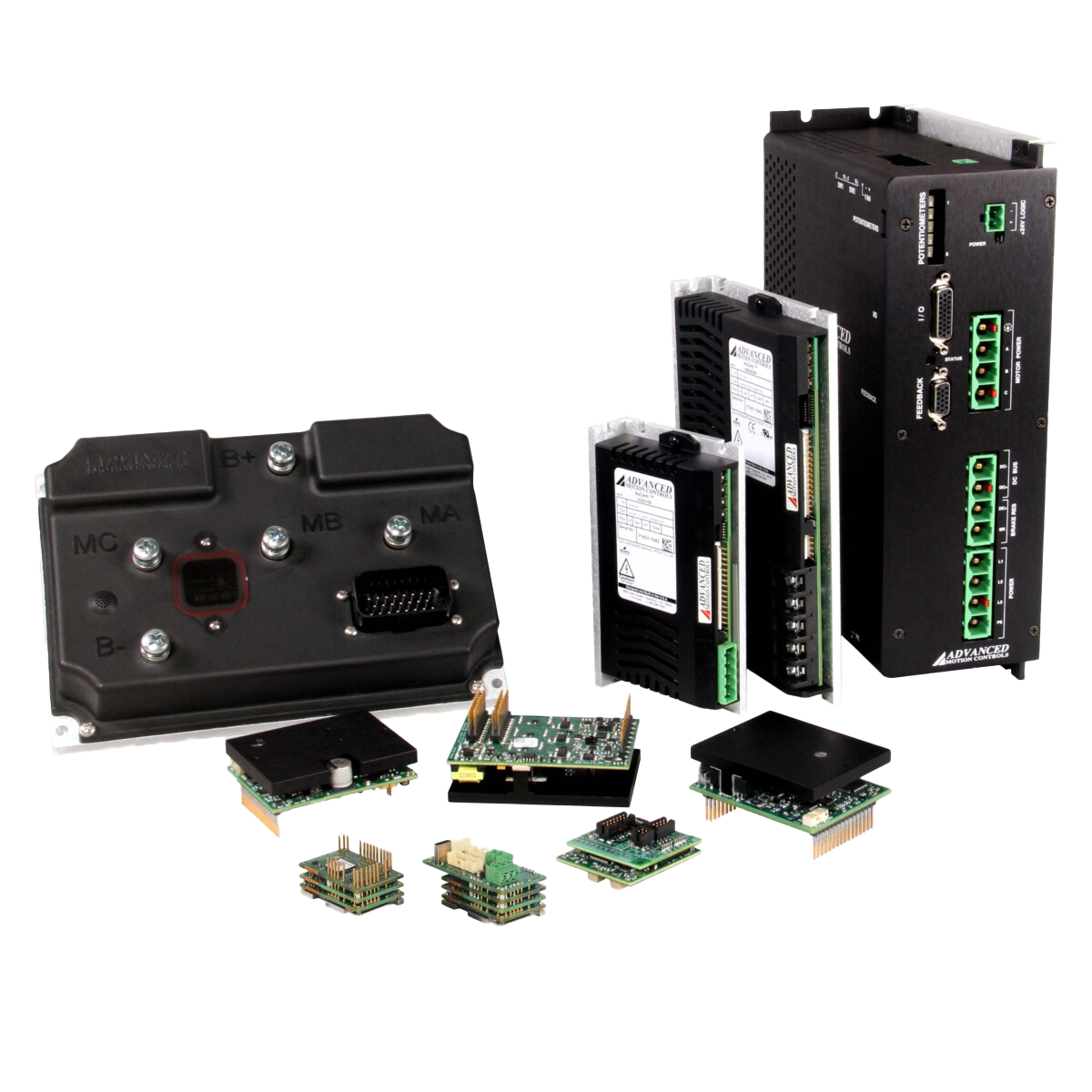

ADVANCED Motion Controls provides a wide range of standard off-the-shelf servo drives that use BiSS for encoder feedback. If they don’t have exactly what you need, they can make a custom solution that will meet your specifications.

Servotronix’s CDHD servo drives operate seamlessly with BiSS-compatible encoders and other devices. BiSS-protocol customers can now take advantage of the high power density, simple commissioning, versatility and cost-effectiveness of Servotronix servo drives.

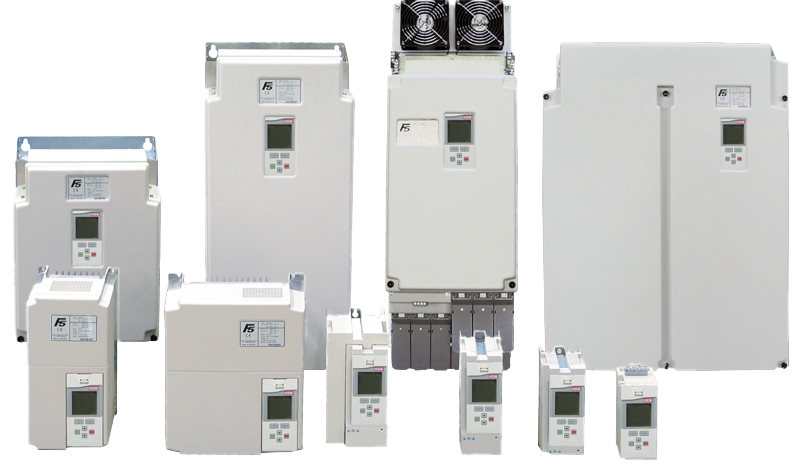

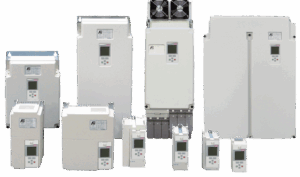

COMBIVERT F5 is the standard frequency inverter for controlled and regulated applications for heavy-duty tasks in machine and installation manufacture with performance in stages up to 900 kW.

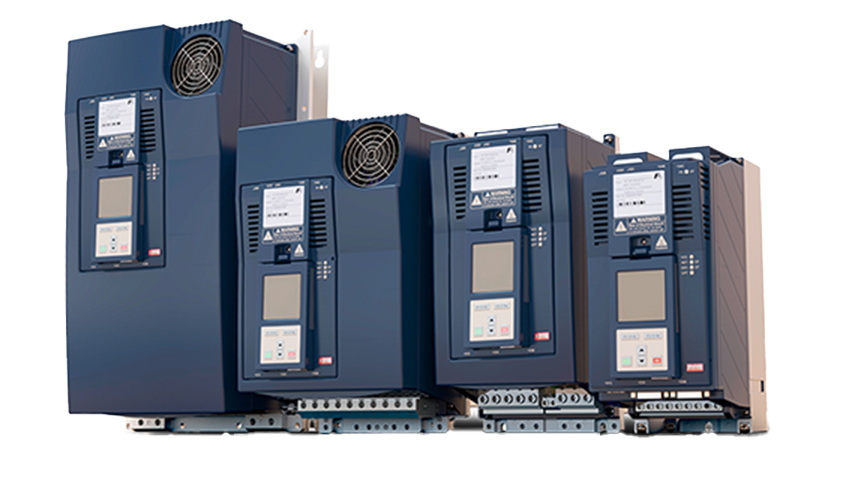

COMBIVERT F6 is a modern, compact and now more flexible drive converter for performance levels from 4kW to 400kW. For this the Drive Controller provides optimum performance in torque, speed and position control.

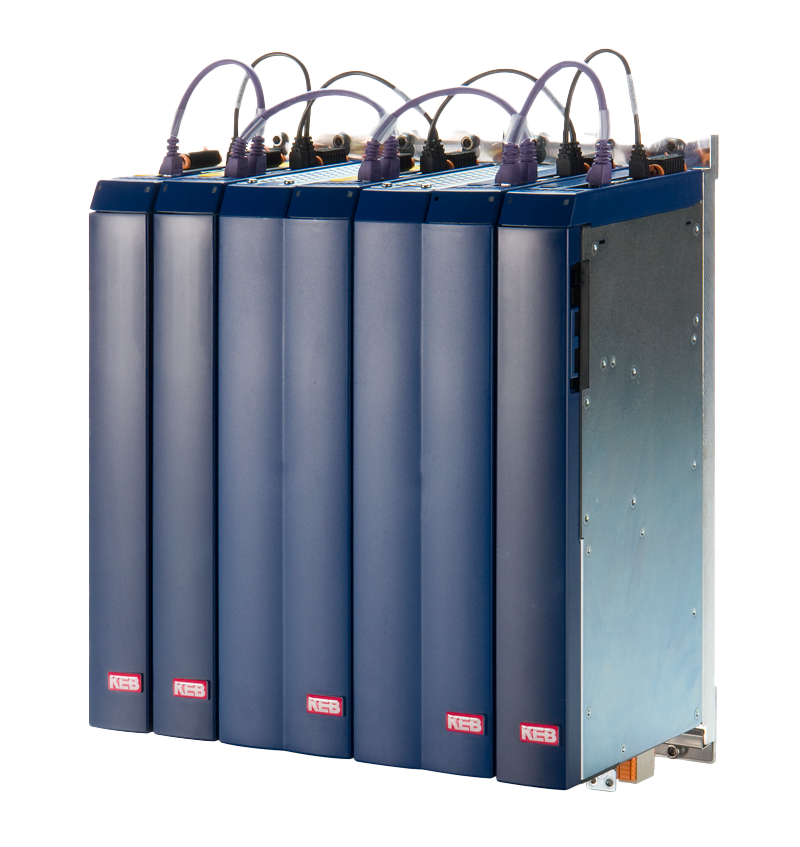

KEB COMBIVERT H6 Multi-axis system is a DC intermediate circuit coupled drive controller system for the operation of synchronous and asynchronous machines. The wide performance range covered by the system and the multiple combination options enable flexible use of the H6 System in a broad spectrum of different applications up to 315A.

COMBIVERT S6 is a modern, compact but flexible servo-amplifier for performance levels from 0.75kW to 7.5kW or electrical currents from 2.6A to 12.5A. Also, the drive controller provides optimum performance in torque-, speed and position control.

Galil Motion Control is the leading supplier of high-performance, cost-effective and easy-to-use controllers with over 500,000 controllers installed world-wide. Galil’s complete line of motion controllers includes single and multi-axis; PCI or Ethernet with optional built-in Amplifiers for servo or stepper motor applications. Each BiSS encoder is wired directly to the Galil controller, and the controller addresses each individual encoder independently.

Drive monitoring module with BiSS Interface:

  • 8 digital 24V inputs
  • 7 safe 24V transistor outputs
  • 2 speed and break monitors for rotary and linear absolute position encoders with BiSS Interface

Dual-Axis Servo Drive

ESI Motion’s Draco Servo Drive provides powerhouse performance in a small, lightweight package.

Draco incorporates our rugged, high-density DSP controller and power driver modules, offers several feedback options, and is packaged in a military-grade submersible case.

This versatile servo drive is ideal for high-performance applications operating at high temperatures, in high vibration, or other extreme environmental conditions. ESI Motion’s servo drive systems are designed for precision military, aviation, automotive, robotics, and specialized industrial applications where size and weight are critical. ESI Motion products are designed and built at our USA facility.

Series of motion controllers with integrated motor drives

The ECM series of products feature all-in-one motion control and motor drive solutions for cost-sensitive single or multi-axis OEM applications. Designed to streamline machine integration at a cost-effective price point, ECM series products leverage the same powerful development, tuning, programming and performance analysis software tools as our SPiiPlus series. ECM products are compact, highly integrated, industrialized single-box solutions.



EL5042 EtherCAT Terminal enables exact and fast positioning applications with BiSS C encoders and ensures high synchronicity to other processes by EtherCAT’s Distributed Clocks. The 2-channel BiSS-C interface for direct connection of BiSS-C encoders is suitable for exact and fast positioning applications – with distributed clocks ensuring high synchronicity with other processes. Via unidirectional BiSS-C communication, the EL5042 sends as a master the clock signal for position detection to the BiSS-C slave (encoder), which returns the position data with up to 64-bit resolution. The EL5042 can be optimally adapted to different encoder types by selecting appropriate operation modes, transmission frequencies and frame widths.
Elmo provides with the new “Gold Twitter” a BiSS capable the Ultra Small, Ultra Efficient NANO Servo Drive that provides over 4000 qualitative Watts. Gold Twitter Highlights:
  • High power density, over 4000 of Qualitative Watts
  • Ultra high current 50A / 100V
  • Size: 35mm x 30mm x 18mm designed to be mounted on a PCB.
  • Record-setting weight of only 18-22 grams (less than 1 ounce)
  • Ultra Small, Ultra Efficient, designed to be mounted on a PCB
  • Wide Operating ranges: 60VDC … 200VDC
  • Supports any feedback sensor in single, dual and gantry loop configurations
  • Incorporates Proprietary “Fast and Soft Switching Technology” resulting in >99% efficiency yet negligible EMI
Motion Controllers for Harsh Environment -40°C to+70°C, Vibrations up to 14GRMS: Elmos Gold Lion Line has the solution for your system challenges. The Gold Lion Line components synergy, distributed intelligence and variety of features are easily harnessed to create your system and to answer your needs. The built-in operational simplicity of each component and the entire system, combined with an innovative single software environment to interface and control all units, ensure the fastest time-to-market and the highest performances.
