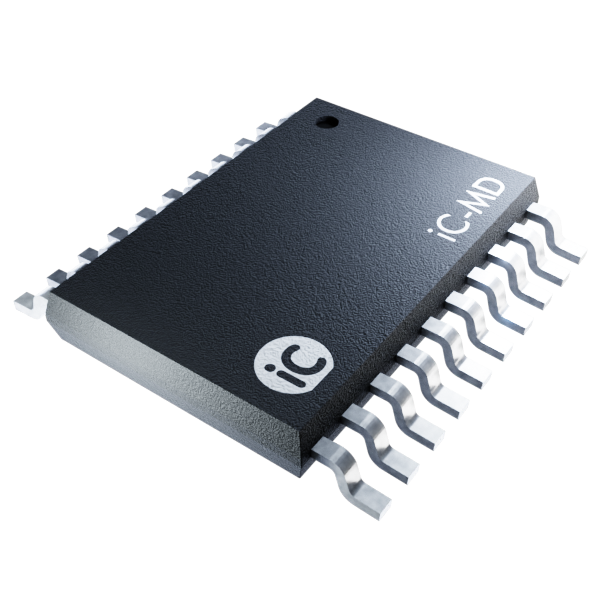

iC-MD

iC-MD processes quadrature encoder signals (with A, B and index) of up to 3 incremental encoders.
Possible counter configurations are up to 48 bit or up to 3 A B counter. Various input signals are applicable: differential RS422 and up to 12 V levels and TTL, CMOS and LVDS logic signals. The device can be accessed via SPI interface or can be operated as a BiSS C or SSI slave device.
