iC-MHL200

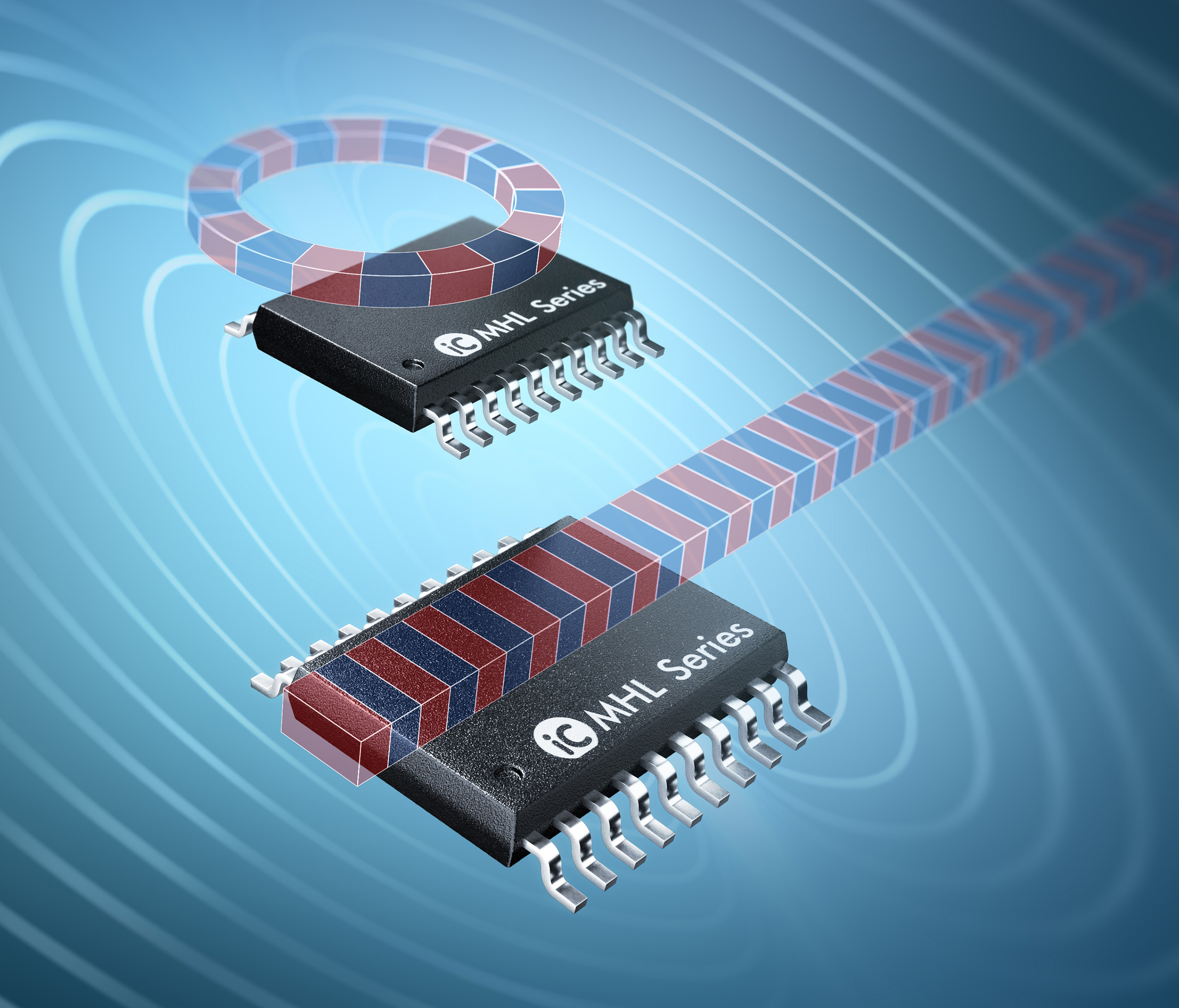

The iC-MHL200 is an integrated Hall encoder for sensing linear and rotary magnetic targets with a 2 mm pole pitch.
A smallest linear position increment of 1 μm can be achieved when the device is operated at 12 bit resolution. The interpolator resolution can be programmed up to a maximum of 4096 increments per magnetic signal period (equivalent to a 4 mm position shift). Using the serial BiSS C interface position data can be transmitted and iC-MHL200 can be accessed for setup. The power-on configuration and internal parameters can then be stored permanently in an on-chip zapping ROM.
